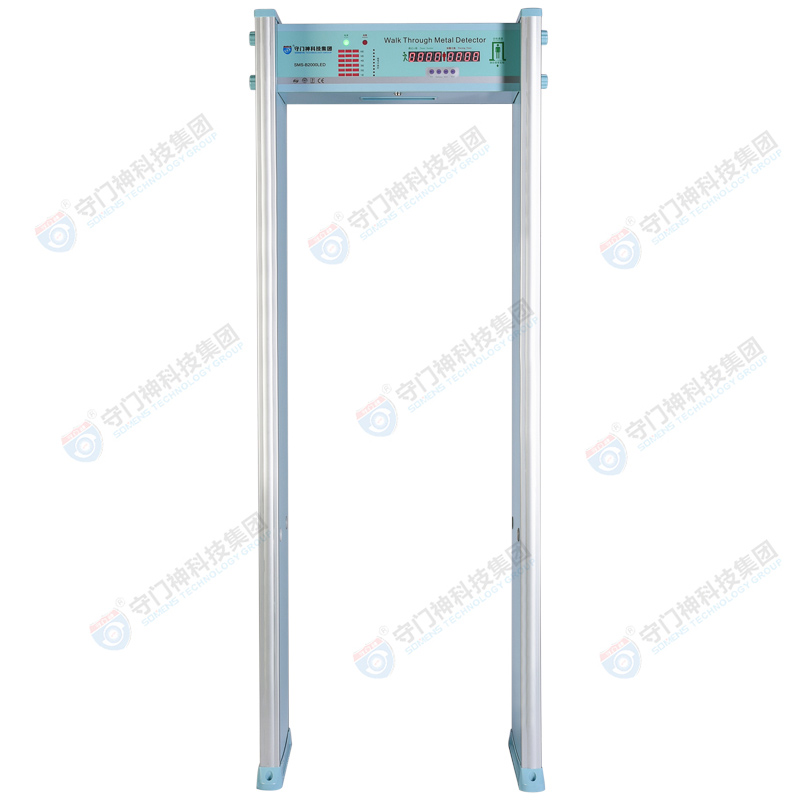

SOMENS-B2000LED economic metal detection security door

Accurate positioning: six overlapping mesh detection areas are divided, double-shot and double-receiving, which can accurately locate the detected object. The main chassis panel has its own light display module, which can visually see the position of the human body carrying hidden items.

Product category：Economic metal detection security door
Product model：SOMENS-B2000

National Service Hotline 400-8353-880

Consultation

Product details
Product parameters

| Product advantages

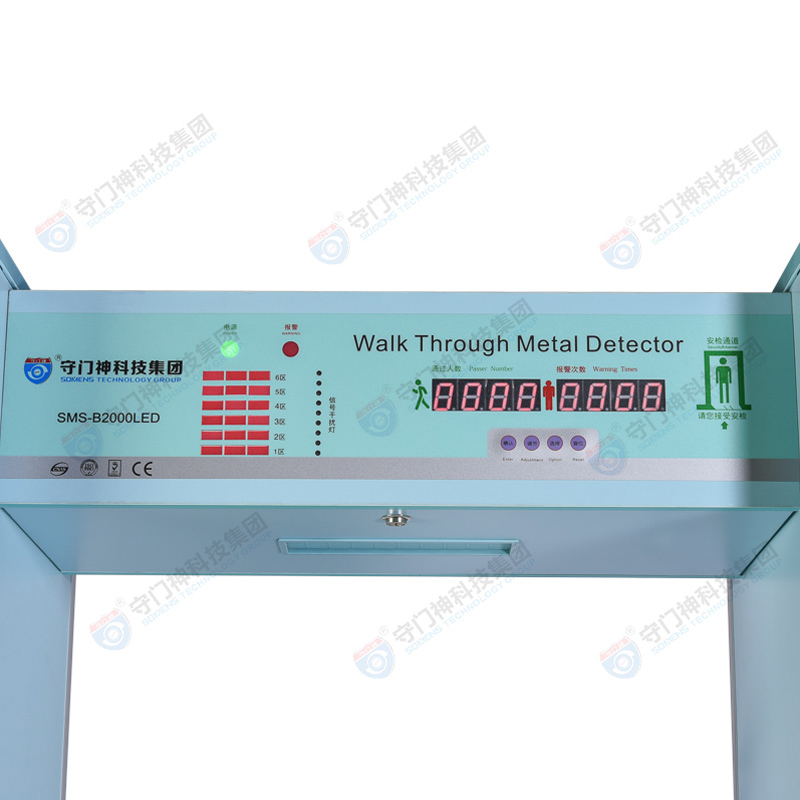

◆ Accurate positioning: six overlapping mesh detection areas are divided, double-shot and double-receiving, which can accurately locate the object to be detected. The main chassis panel has a light display module, which can visually see the position of the human body carrying hidden items.
◆ Sensitivity adjustable: 6 areas from top to bottom, each area has 100 sensitivity levels (0-99), which can be adjusted to the appropriate sensitivity according to the detection requirements.
◆ The overall sensitivity is adjustable: 0~99 overall sensitivity is adjustable.
◆ Door material: The exterior is made of lacquered PVC, and the door body has wear-resistant feet on the upper and lower sides, which are corrosion-resistant and anti-corrosive.
◆ Password protection: only allow the personnel to operate, prevent unauthorized persons from changing parameters, no maintenance, no need to periodically calibrate.
◆ Built-in self-diagnosis program, power-on self-test, automatic error prompt.
◆ Panel Settings: There are 4 quick debug buttons on the debug panel for setting various parameters.
◆ Quick setting: Quickly set working parameters such as court, station, airport, prison, etc. according to different places.
◆ The alarm duration can be adjusted: the alarm can be adjusted for 1~3 seconds.
◆ Strong anti-interference ability: multiple doors are connected in parallel with 0.6 meters.
◆ Composite circuit design: scattering infrared device, fast sensing, can reduce false positives and false negatives, automatically count the number of alarms, pass the number of people.
◆ Serial communication: Reserve data communication interface, which can be connected to the computer. (late upgrade).
◆ Digital pulse technology: It has a digital signal processing filter system and has excellent anti-electromagnetic interference capability.
◆ Modular design: modular design, easy installation and easy troubleshooting.
◆ Strong anti-attack crafting: It has strong anti-collision and impact ability in the state of no passing, and it is not affected by external factors during standby normal operation.
◆ Microprocessor technology: The scanned electromagnetic wave is generated by the microcomputer control circuit, and the scanning rate can be precisely controlled. Program settings are made through the control panel as needed to ensure flexibility, reliability and stability.
◆ Magnetic field emission technology: in line with the current international safety standards, using weak magnetic field technology, harmless to heart pacemaker wearers, pregnant women, floppy disks, film, video tapes, etc.

Related equipment Look at more

<sub id="nckpu"><input id="nckpu"></input></sub>^{<blockquote id="nckpu"></blockquote>}

SOMENS-B2000Technical Parameters
Working power supply	AC220V f：50HZ
Actual power consumption	30w
Signal frequency	5.9KHz~8.0KHz
Sensitivity	Each zone sensitivity 0~99 is adjustable
Frequency band	16 bands are optional
Alarm duration	1~3 seconds adjustable
Number of detection locations	6
Operating temperature	-20℃ +55℃
Working environment humidity	Less than 100% does not condense
Channel size (mm)	2055 (height) × 700 (width) × 500 (deep)
Dimensions (mm)	2225 (height) × 820 (width) × 522 (deep)
Total Weight	About 68kg
Standards compliant	GB15210-2003
